Disinfection Device Chlorine Dioxide Generator , Sodium Hypochlorite Dosing Device

Disinfection device (chlorine dioxide generator, UV sterilizer, sodium hypochlorite dosing device)

Advantages and performance characteristics:

The process can use negative pressure aeration and positive pressure injection technology to produce chlorine dioxide disinfectant. The core reactor of the equipment is made of high temperature and corrosion resistant composite material, and the equipment has a long service life. The reactor is designed for multi-stage column structure heating, and the reaction temperature of the main reactor is as high as 70 ° C, which ensures the high content of CLO2 and increases the conversion rate of raw materials.

The automatic control system has automatic alarm and protection functions such as under-pressure, material shortage, over-temperature and water shortage (automatic shutdown). The raw material delivery adopts imported metering pumps from Germany, Japan, USA, Italy, etc., and the operation is stable and reliable. The automatic control system of the device is powerful.

1) Equipment name: chlorine dioxide generator

2) Applied occasions: disinfection of life, drinking tap water in various occasions; sterilization and air environment disinfection in restaurants, hotels, homes and tableware.

Final sterilization of equipment, pipes, and containers in food, beverage, and fermentation industries. Sterilization of pipelines, facilities and environment in dairy factories and slaughterhouses; sterilization and disinfection of hospital sewage; sterilization of swimming pools, industrial circulating water and bath water; households, hotels, restaurants, fruits and vegetables, fish and other foods Preservation and final rinsing and disinfection; configuration of various oral disinfectants, deodorants and wound cleaning fluids.

Sterilization and deodorization in wastewater reuse; cyanide treatment of electroplating cyanide-containing wastewater, decolorization treatment of printing and dyeing wastewater, and algae sterilization treatment of industrial enthalpy cooling water.

Equipment picture:

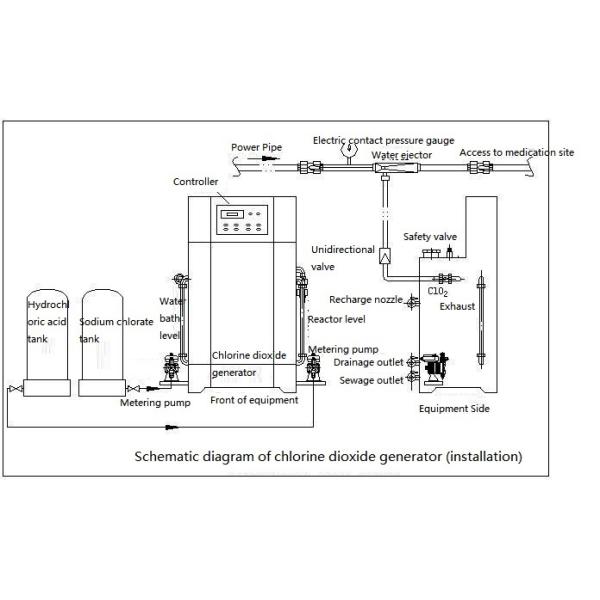

Equipment diagram:

Installation site picture:
